Galvanized Steel Sheet

Home Galvanized Steel Galvanized Steel Sheet

Zero Spangle Galvanized Steel Sheet

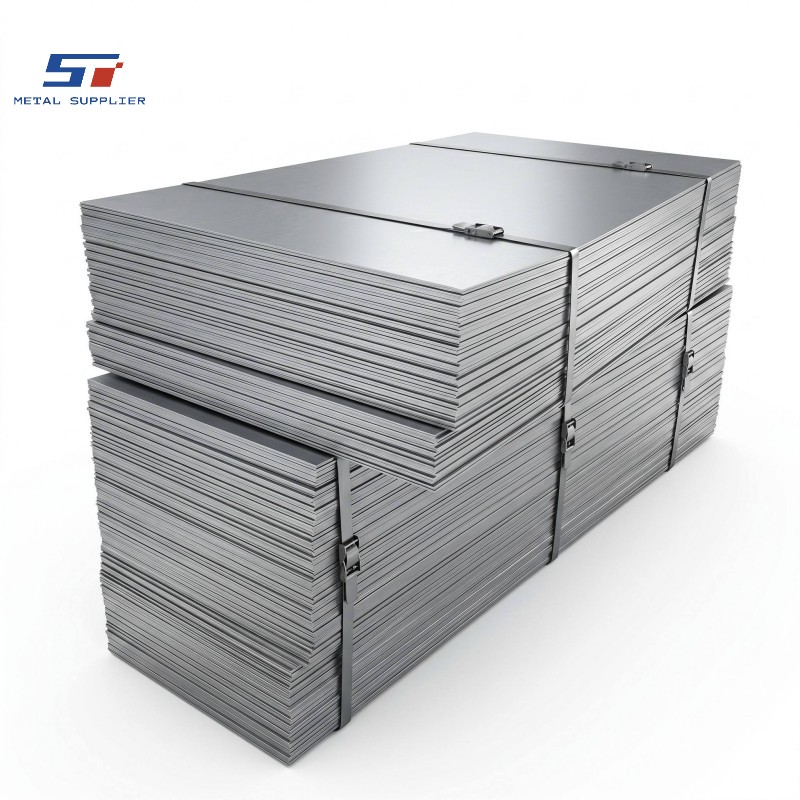

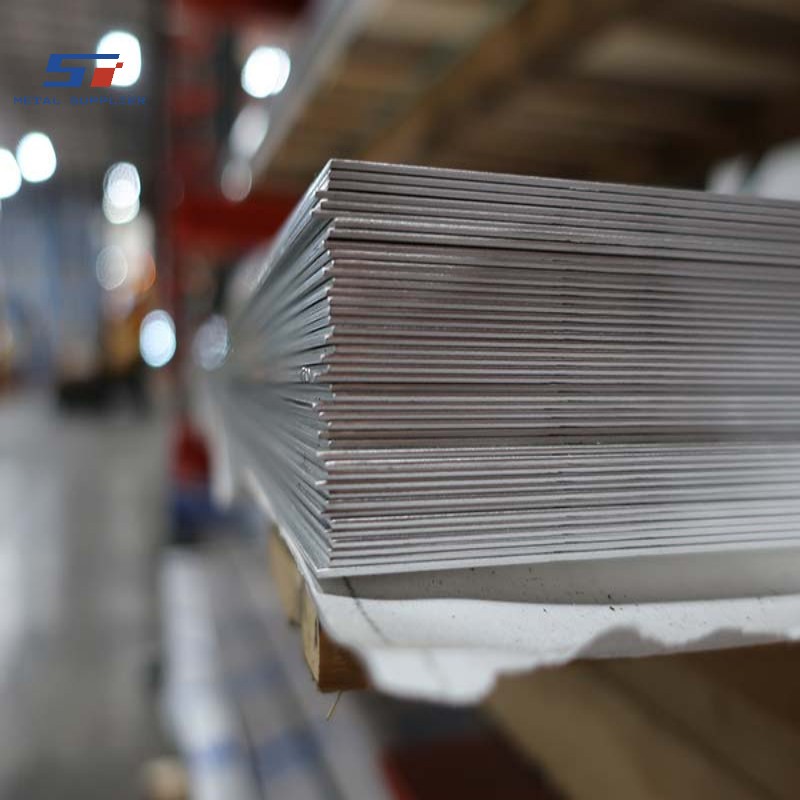

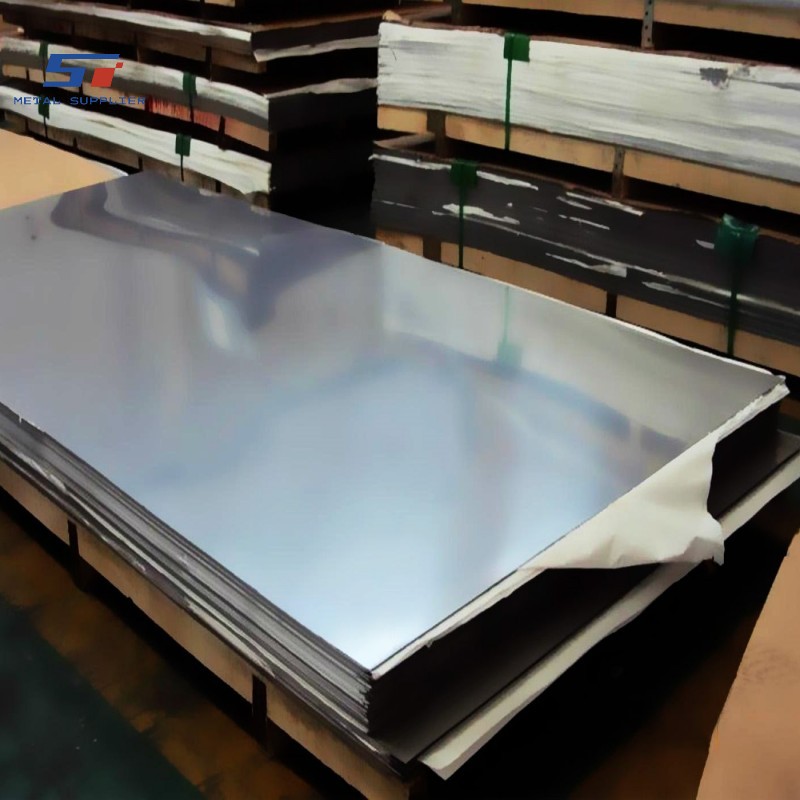

Zero Spangle Galvanized Steel Sheet

Zero Spangle Galvanized Steel Sheet is a premium galvanized steel sheet with a smooth and uniform zinc-coated surface, offering excellent corrosion resistance and superior paint adhesion. It is widely used in home appliances, automotive components, construction materials, and precision fabrication applications.

Material Type :
Zero spangle hot-dip galvanized steel (SGCC, DX51D+Z)
Width Range :
800mm – 1500mm
Thickness Range :
0.12mm – 4.0mm
Customizable :
Yes
Order(MOQ) :
2T

Categories

New Products

Product Details

Specifications

Zero spangle galvanized steel sheets are produced through advanced galvanizing processes that control zinc crystal formation, resulting in a smooth surface without visible spangle patterns. This uniform appearance improves surface quality and provides an excellent base for painting, coating, and further processing.

These steel sheets offer excellent corrosion resistance, formability, and surface consistency, making them suitable for applications that require both durability and aesthetic appearance. The zinc coating effectively protects the steel substrate from moisture and environmental exposure, extending product service life.

Zero spangle galvanized steel sheets are widely used in household appliances, electrical cabinets, automotive panels, roofing systems, ventilation equipment, and precision metal fabrication, where surface finish, coating performance, and long-term corrosion protection are essential.

Zero Spangle Galvanized Steel Sheet is one of our core strength products. We maintain substantial inventory to ensure rapid delivery and can also customize extra-large diameter seamless pipes according to your specific requirements. Additionally, we provide comprehensive services including spectroscopic analysis, mechanical property testing, pressure testing, and non-destructive testing (NDT).

Grade	Grade Equivalent	Mechanical Properties	Size Range	Chemical Composition (Typical, %)
DC01+ZE Commercial Grade Zero Spangle	GB/T 2518 DC01+ZE ASTM A653 CS Type A JIS G3302 SGCC EN 10152 DX51D+Z	Tensile 270–410 MPa Yield ≥140 MPa Elongation ≥38% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Smooth Surface, Suitable for General Forming, Decoration, Home Appliance Shells	Thickness 0.3–3.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.12, Si≤0.30 Mn≤0.60, P≤0.045, S≤0.045, Al≥0.020
DC03+ZE Stamping Grade Zero Spangle	GB/T 2518 DC03+ZE ASTM A653 CS Type B JIS G3302 SGCD1 EN 10152 DX52D+Z	Tensile 270–370 MPa Yield ≥120 MPa Elongation ≥42% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Excellent Stamping Performance, Suitable for Auto Parts, Home Appliance Liners	Thickness 0.4–2.5 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.10, Si≤0.30 Mn≤0.45, P≤0.035, S≤0.035, Al≥0.020
DC04+ZE Deep Drawing Grade Zero Spangle	GB/T 2518 DC04+ZE ASTM A653 DDS Type A JIS G3302 SGCD2 EN 10152 DX53D+Z	Tensile 270–350 MPa Yield ≥100 MPa Elongation ≥46% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Superior Deep Drawing Performance, Suitable for Complex Formed Parts, Auto Panels	Thickness 0.5–2.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.08, Si≤0.30 Mn≤0.40, P≤0.030, S≤0.030, Al≥0.020
DC05+ZE Extra Deep Drawing Grade Zero Spangle	GB/T 2518 DC05+ZE ASTM A653 DDS Type B JIS G3302 SGCD3 EN 10152 DX54D+Z	Tensile 250–330 MPa Yield ≥90 MPa Elongation ≥48% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Ultra Deep Drawing Performance, Suitable for Complex Stretched Parts, High-end Home Appliance Panels	Thickness 0.6–2.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.06, Si≤0.30 Mn≤0.35, P≤0.025, S≤0.025, Al≥0.020
DC06+ZE Super Extra Deep Drawing Grade Zero Spangle	GB/T 2518 DC06+ZE ASTM A653 EDDS JIS G3302 SGCD4 EN 10152 DX56D+Z	Tensile 240–320 MPa Yield ≥80 MPa Elongation ≥50% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Ultimate Deep Drawing Performance, Suitable for Extreme Complex Formed Parts, High-end Auto Exterior Panels	Thickness 0.7–2.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.04, Si≤0.30 Mn≤0.30, P≤0.020, S≤0.020, Al≥0.020
Q195 Commercial Grade Zero Spangle	GB/T 2518 Q195+Z ASTM A653 CS Type A EN 10152 DX51D+Z JIS G3302 SGCC	Tensile 315–430 MPa Yield ≥195 MPa Elongation ≥30% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Smooth Surface, Suitable for General Structure, Decoration, Ventilation Ducts	Thickness 0.3–4.0 mm Width 1000–1800 mm Length 2000–12000 mm Custom Sizes & Coating Weight Available	C≤0.12, Si≤0.30 Mn≤0.50, P≤0.045, S≤0.045
Q235B Structural Grade Zero Spangle	GB/T 2518 Q235B+Z ASTM A653 CS Type B EN 10152 DX52D+Z JIS G3302 SGCD1	Tensile 370–500 MPa Yield ≥235 MPa Elongation ≥26% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Suitable for Steel Structure, Brackets, Guardrails, Construction Use	Thickness 0.5–6.0 mm Width 1000–1800 mm Length 2000–12000 mm Custom Sizes & Coating Weight Available	C≤0.22, Si≤0.35 Mn≤1.40, P≤0.045, S≤0.045
Q355B High Strength Low Alloy Zero Spangle	GB/T 2518 Q355B+Z ASTM A653 HSLA Grade 50 EN 10152 S355GD+Z JIS G3302 SGHC440	Tensile ≥470 MPa Yield ≥355 MPa Elongation ≥21% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Suitable for High Strength Structure, Heavy Load Brackets, Bridge Accessories	Thickness 1.0–8.0 mm Width 1000–1800 mm Length 2000–12000 mm Custom Sizes & Coating Weight Available	C≤0.24, Si≤0.55 Mn≤1.60, P≤0.035, S≤0.035
Q420B Ultra High Strength Low Alloy Zero Spangle	GB/T 2518 Q420B+Z ASTM A653 HSLA Grade 60 EN 10152 S420GD+Z JIS G3302 SGHC490	Tensile ≥520 MPa Yield ≥420 MPa Elongation ≥19% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Suitable for Ultra High Strength Structure, Heavy Equipment, Bridge Components	Thickness 1.0–6.0 mm Width 1000–1800 mm Length 2000–12000 mm Custom Sizes & Coating Weight Available	C≤0.20, Si≤0.55 Mn≤1.70, P≤0.030, S≤0.030
ASTM A653 Grade 33 Zero Spangle	ASTM A653 CS Type 33 GB/T 2518 Q215+Z EN 10152 DX51D+Z JIS G3302 SGCC	Tensile 340–420 MPa Yield ≥230 MPa Elongation ≥28% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Conforms to ASTM A653 Standard, Suitable for General Commercial Use, Formed Parts	Thickness 0.3–4.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.15, Si≤0.30 Mn≤0.60, P≤0.040, S≤0.050
ASTM A653 Grade 50 High Strength Zero Spangle	ASTM A653 HSLA Grade 50 GB/T 2518 Q355B+Z EN 10152 S355GD+Z JIS G3302 SGHC440	Tensile 485–620 MPa Yield ≥345 MPa Elongation ≥22% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Conforms to ASTM A653 Standard, Suitable for High Strength Structure, Auto Chassis, Agricultural Machinery Parts	Thickness 0.8–6.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.23, Si≤0.40 Mn≤1.35, P≤0.035, S≤0.040
ASTM A653 Grade 60 Ultra High Strength Zero Spangle	ASTM A653 HSLA Grade 60 GB/T 2518 Q420B+Z EN 10152 S420GD+Z JIS G3302 SGHC490	Tensile ≥520 MPa Yield ≥415 MPa Elongation ≥18% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Conforms to ASTM A653 Standard, Suitable for Ultra High Strength Structure, Heavy Load Equipment, Bridge Components	Thickness 1.0–6.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.20, Si≤0.40 Mn≤1.35, P≤0.030, S≤0.035
EN 10152 DX51D+Z Zero Spangle	EN 10152 DX51D+Z GB/T 2518 DC01+ZE ASTM A653 CS Type A JIS G3302 SGCC	Tensile 270–410 MPa Yield ≥140 MPa Elongation ≥38% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Conforms to EN 10152 Standard, Suitable for General Forming, Decoration, Home Appliances	Thickness 0.3–3.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.12, Si≤0.30 Mn≤0.60, P≤0.045, S≤0.045, Al≥0.020
EN 10152 DX52D+Z Stamping Grade Zero Spangle	EN 10152 DX52D+Z GB/T 2518 DC03+ZE ASTM A653 CS Type B JIS G3302 SGCD1	Tensile 270–370 MPa Yield ≥120 MPa Elongation ≥42% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Conforms to EN 10152 Standard, Suitable for Stamping Parts, Auto Accessories, Home Appliance Liners	Thickness 0.4–2.5 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.10, Si≤0.30 Mn≤0.45, P≤0.035, S≤0.035, Al≥0.020
EN 10152 DX53D+Z Deep Drawing Grade Zero Spangle	EN 10152 DX53D+Z GB/T 2518 DC04+ZE ASTM A653 DDS Type A JIS G3302 SGCD2	Tensile 270–350 MPa Yield ≥100 MPa Elongation ≥46% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Conforms to EN 10152 Standard, Suitable for Deep Drawing Parts, Complex Formed Parts, Auto Panels	Thickness 0.5–2.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.08, Si≤0.30 Mn≤0.40, P≤0.030, S≤0.030, Al≥0.020
EN 10152 S355GD+Z High Strength Zero Spangle	EN 10152 S355GD+Z GB/T 2518 Q355B+Z ASTM A653 HSLA Grade 50 JIS G3302 SGHC440	Tensile ≥470 MPa Yield ≥355 MPa Elongation ≥21% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Conforms to EN 10152 Standard, Suitable for High Strength Structure, Heavy Load Brackets, Bridge Accessories	Thickness 1.0–8.0 mm Width 1000–1800 mm Length 2000–12000 mm Custom Sizes & Coating Weight Available	C≤0.24, Si≤0.55 Mn≤1.60, P≤0.035, S≤0.035
EN 10152 S420GD+Z Ultra High Strength Zero Spangle	EN 10152 S420GD+Z GB/T 2518 Q420B+Z ASTM A653 HSLA Grade 60 JIS G3302 SGHC490	Tensile ≥520 MPa Yield ≥420 MPa Elongation ≥19% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Conforms to EN 10152 Standard, Suitable for Ultra High Strength Structure, Heavy Equipment, Bridge Components	Thickness 1.0–6.0 mm Width 1000–1800 mm Length 2000–12000 mm Custom Sizes & Coating Weight Available	C≤0.20, Si≤0.55 Mn≤1.70, P≤0.030, S≤0.030
JIS G3302 SGCC Zero Spangle	JIS G3302 SGCC GB/T 2518 DC01+ZE ASTM A653 CS Type A EN 10152 DX51D+Z	Tensile 270–410 MPa Yield ≥140 MPa Elongation ≥38% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Conforms to JIS G3302 Standard, Suitable for General Commercial Use, Decoration, Home Appliance Shells	Thickness 0.3–3.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.12, Si≤0.30 Mn≤0.60, P≤0.045, S≤0.045, Al≥0.020
JIS G3302 SGCD1 Stamping Grade Zero Spangle	JIS G3302 SGCD1 GB/T 2518 DC03+ZE ASTM A653 CS Type B EN 10152 DX52D+Z	Tensile 270–370 MPa Yield ≥120 MPa Elongation ≥42% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Conforms to JIS G3302 Standard, Suitable for Stamping Parts, Auto Accessories, Home Appliance Liners	Thickness 0.4–2.5 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.10, Si≤0.30 Mn≤0.45, P≤0.035, S≤0.035, Al≥0.020
JIS G3302 SGCD2 Deep Drawing Grade Zero Spangle	JIS G3302 SGCD2 GB/T 2518 DC04+ZE ASTM A653 DDS Type A EN 10152 DX53D+Z	Tensile 270–350 MPa Yield ≥100 MPa Elongation ≥46% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Conforms to JIS G3302 Standard, Suitable for Deep Drawing Parts, Complex Formed Parts, Auto Panels	Thickness 0.5–2.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.08, Si≤0.30 Mn≤0.40, P≤0.030, S≤0.030, Al≥0.020
JIS G3302 SGHC440 High Strength Zero Spangle	JIS G3302 SGHC440 GB/T 2518 Q355B+Z ASTM A653 HSLA Grade 50 EN 10152 S355GD+Z	Tensile ≥440 MPa Yield ≥340 MPa Elongation ≥22% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Conforms to JIS G3302 Standard, Suitable for High Strength Structure, Auto Chassis, Agricultural Machinery Parts	Thickness 0.8–6.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.23, Si≤0.40 Mn≤1.35, P≤0.035, S≤0.040
JIS G3302 SGHC490 Ultra High Strength Zero Spangle	JIS G3302 SGHC490 GB/T 2518 Q420B+Z ASTM A653 HSLA Grade 60 EN 10152 S420GD+Z	Tensile ≥490 MPa Yield ≥400 MPa Elongation ≥19% Double-sided Zinc Coating Weight: 60–275 g/㎡ Zero Spangle Surface, Conforms to JIS G3302 Standard, Suitable for Ultra High Strength Structure, Heavy Load Equipment, Bridge Components	Thickness 1.0–6.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.20, Si≤0.40 Mn≤1.35, P≤0.030, S≤0.035

Note: If you do not find a Zero Spangle Galvanized Steel Sheet that meets your requirements or is suitable for your customer’s project, please contact our manager sales consultant (Email: stsalesman4@stmetal001.com) and send us your specifications and technical parameter files to obtain Customized quotation plan.

Video

Factory

Q: What types and standards of galvanized steel do you mainly supply?

A: We mainly supply hot-dip galvanized steel products including galvanized steel sheets, coils, strips, and pipes. Common base steel grades include DX51D+Z, DX52D+Z, DX53D+Z, and DX54D+Z. The zinc coating thickness typically ranges from Z20 to Z275 to meet different corrosion protection requirements. All galvanized steel products comply with international standards such as ASTM, JIS, and EN. We can also provide material test certificates (MTC) and support customized specifications according to customer requirements.

Q: Can you provide special specifications or non-standard customization? For example, extra-wide plates or pipes with specific wall thicknesses?

A: Of course. One of our advantages is our flexible customization capabilities. We can provide customized size cutting, special thicknesses, and special surface treatments (such as 2B, BA, No.4 brushed finish, mirror finish) based on your drawings or requirements. Whether it's a small trial order or a large-volume purchase, we can meet your needs.

Q: How do you guarantee the quality and consistency of materials? Do you have quality certifications?

A: Quality is our lifeline. We use direct supply from large steel mills to ensure material traceability. Each shipment comes with a Material Quality Certificate (MTC). We have our own quality control team that conducts random checks on material composition, dimensional tolerances, surface finish, and mechanical properties. Our factory is also ISO 9001:2015 quality management system certified.

Q: What are your delivery times and logistics solutions for overseas customers?

A: For standard-specification in-stock products, we can complete preparation and shipment within 7-14 days. Delivery times for customized products will be determined through negotiation based on the specific process. We have established international logistics partners who can arrange full container load (FCL), less-than-container load (LCL), or air freight according to your needs, and provide various trade terms such as EXW, FOB, CIF, and DDP, with door-to-door service.

Q: As a new customer, how do I begin cooperation? Can you provide samples for testing?

A: The cooperation process is very smooth: 1) You provide specific requirements (brand, specifications, quantity, standards); 2) We provide a quotation and technical advice; 3) After confirmation, we arrange the contract and payment; 4) Production/pickup and quality inspection; 5) Shipment and provision of documentation. We encourage sample testing. For serious customers, we can provide small-size samples to ensure that the materials fully meet your processing and application requirements.

Why Choose Us
Over 20 years of experience in steel manufacturing, offering a comprehensive product range and one-stop supply solutions. Committed to long-term cooperation and reliable service for global partners.
Production & Quality Control
Stable production capacity supported by an experienced technical team. Strict quality management with ISO-compliant inspections and optional third-party testing (SGS, TÜV, CE).
Packing & Shipping
Flexible and secure packaging tailored to product type and customer requirements. Fast and reliable delivery with standard stock in 2 weeks and custom orders scheduled per specifications.
Certificate & Compliance
ISO9001 certified with full support for international standards. We provide material certificates (MTC) and third-party inspections to ensure compliance and customer confidence.
