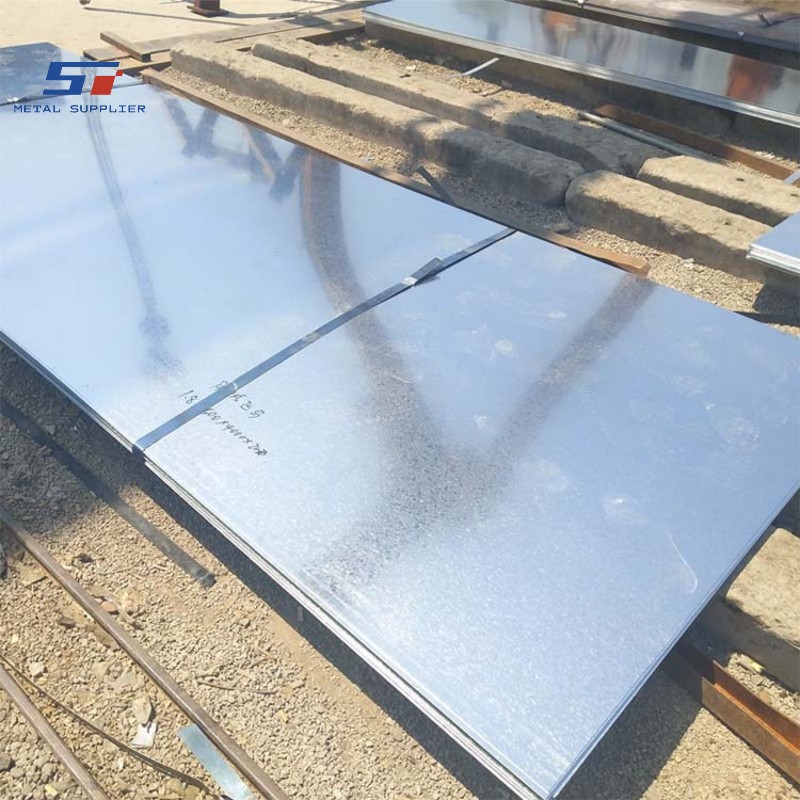

Regular Spangle Galvanized Steel Sheet

Regular Spangle Galvanized Steel Sheet

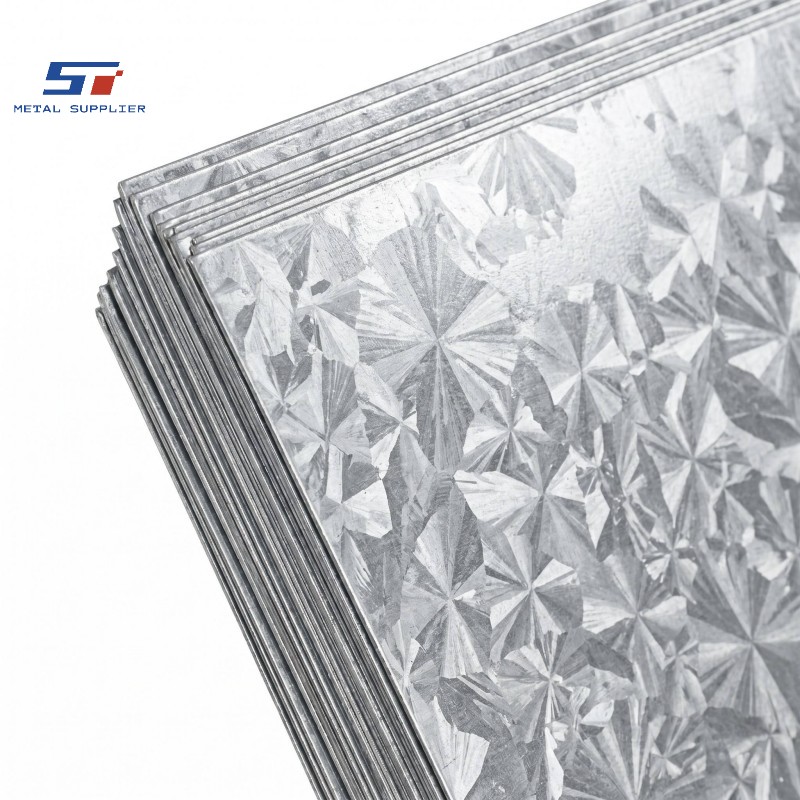

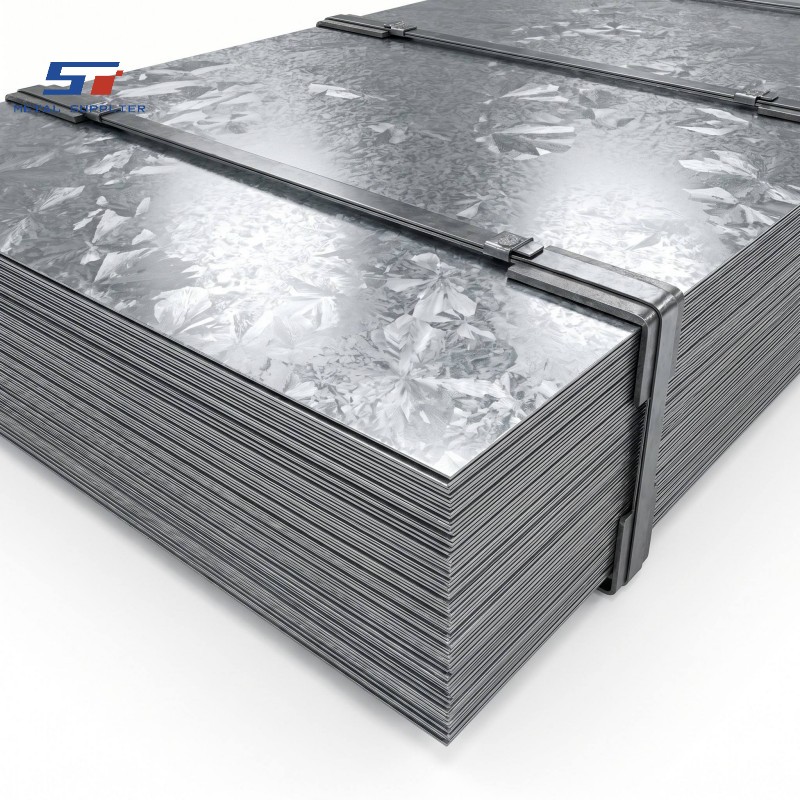

Regular Spangle Galvanized Steel Sheet is a zinc-coated steel sheet featuring a distinctive spangle pattern, offering excellent corrosion resistance and cost-effective performance. It is widely used in construction, roofing systems, ventilation equipment, and general industrial applications.

Material Type :
Hot-dip galvanized steel with regular spangle (SGCC, DX51D+Z, DX52D+Z)
Width Range :
750mm – 1600mm
Thickness Range :
0.15mm – 5.0mm
Customizable :
Yes
Order(MOQ) :
2T

Categories

New Products

Product Details

Specifications

Regular spangle galvanized steel sheets are produced through hot-dip galvanizing processes, forming visible zinc crystal patterns on the surface. This traditional galvanized finish provides reliable corrosion protection while maintaining an attractive metallic appearance.

These steel sheets offer excellent durability, formability, and weather resistance, making them suitable for fabrication, bending, stamping, and roll-forming applications. The zinc coating effectively protects the steel substrate from rust and environmental exposure, helping extend service life.

Regular spangle galvanized steel sheets are widely used in roofing panels, wall cladding, duct systems, agricultural facilities, storage equipment, and construction projects, where corrosion resistance, durability, and cost efficiency are important considerations.

Regular Spangle Galvanized Steel Sheet is one of our core strength products. We maintain substantial inventory to ensure rapid delivery and can also customize extra-large diameter seamless pipes according to your specific requirements. Additionally, we provide comprehensive services including spectroscopic analysis, mechanical property testing, pressure testing, and non-destructive testing (NDT).

Grade	Grade Equivalent	Mechanical Properties	Size Range	Chemical Composition (Typical, %)
DC01+Z Commercial Grade Regular Spangle	GB/T 2518 DC01+Z ASTM A653 CS Type A JIS G3302 SGCC EN 10152 DX51D+Z	Tensile 270–410 MPa Yield ≥140 MPa Elongation ≥38% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Uniform Zinc Flower Surface, Suitable for General Forming, Construction, Decoration, Ventilation Ducts	Thickness 0.3–3.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.12, Si≤0.30 Mn≤0.60, P≤0.045, S≤0.045, Al≥0.020
DC03+Z Stamping Grade Regular Spangle	GB/T 2518 DC03+Z ASTM A653 CS Type B JIS G3302 SGCD1 EN 10152 DX52D+Z	Tensile 270–370 MPa Yield ≥120 MPa Elongation ≥42% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Excellent Stamping Performance, Suitable for Auto Parts, Home Appliance Liners, General Stamped Parts	Thickness 0.4–2.5 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.10, Si≤0.30 Mn≤0.45, P≤0.035, S≤0.035, Al≥0.020
DC04+Z Deep Drawing Grade Regular Spangle	GB/T 2518 DC04+Z ASTM A653 DDS Type A JIS G3302 SGCD2 EN 10152 DX53D+Z	Tensile 270–350 MPa Yield ≥100 MPa Elongation ≥46% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Superior Deep Drawing Performance, Suitable for Complex Formed Parts, Auto Panels, Deep Drawn Containers	Thickness 0.5–2.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.08, Si≤0.30 Mn≤0.40, P≤0.030, S≤0.030, Al≥0.020
DC05+Z Extra Deep Drawing Grade Regular Spangle	GB/T 2518 DC05+Z ASTM A653 DDS Type B JIS G3302 SGCD3 EN 10152 DX54D+Z	Tensile 250–330 MPa Yield ≥90 MPa Elongation ≥48% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Ultra Deep Drawing Performance, Suitable for Complex Stretched Parts, High-end Home Appliance Panels	Thickness 0.6–2.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.06, Si≤0.30 Mn≤0.35, P≤0.025, S≤0.025, Al≥0.020
DC06+Z Super Extra Deep Drawing Grade Regular Spangle	GB/T 2518 DC06+Z ASTM A653 EDDS JIS G3302 SGCD4 EN 10152 DX56D+Z	Tensile 240–320 MPa Yield ≥80 MPa Elongation ≥50% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Ultimate Deep Drawing Performance, Suitable for Extreme Complex Formed Parts, High-end Auto Exterior Panels	Thickness 0.7–2.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.04, Si≤0.30 Mn≤0.30, P≤0.020, S≤0.020, Al≥0.020
Q195 Commercial Grade Regular Spangle	GB/T 2518 Q195+Z ASTM A653 CS Type A EN 10152 DX51D+Z JIS G3302 SGCC	Tensile 315–430 MPa Yield ≥195 MPa Elongation ≥30% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Smooth Uniform Zinc Flower Surface, Suitable for General Structure, Decoration, Ventilation Ducts, Storage Equipment	Thickness 0.3–4.0 mm Width 1000–1800 mm Length 2000–12000 mm Custom Sizes & Coating Weight Available	C≤0.12, Si≤0.30 Mn≤0.50, P≤0.045, S≤0.045
Q235B Structural Grade Regular Spangle	GB/T 2518 Q235B+Z ASTM A653 CS Type B EN 10152 DX52D+Z JIS G3302 SGCD1	Tensile 370–500 MPa Yield ≥235 MPa Elongation ≥26% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Suitable for Steel Structure, Brackets, Guardrails, Construction Use, Heavy Duty Formed Parts	Thickness 0.5–6.0 mm Width 1000–1800 mm Length 2000–12000 mm Custom Sizes & Coating Weight Available	C≤0.22, Si≤0.35 Mn≤1.40, P≤0.045, S≤0.045
Q355B High Strength Low Alloy Regular Spangle	GB/T 2518 Q355B+Z ASTM A653 HSLA Grade 50 EN 10152 S355GD+Z JIS G3302 SGHC440	Tensile ≥470 MPa Yield ≥355 MPa Elongation ≥21% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Suitable for High Strength Structure, Heavy Load Brackets, Bridge Accessories, Agricultural Machinery Parts	Thickness 1.0–8.0 mm Width 1000–1800 mm Length 2000–12000 mm Custom Sizes & Coating Weight Available	C≤0.24, Si≤0.55 Mn≤1.60, P≤0.035, S≤0.035
Q420B Ultra High Strength Low Alloy Regular Spangle	GB/T 2518 Q420B+Z ASTM A653 HSLA Grade 60 EN 10152 S420GD+Z JIS G3302 SGHC490	Tensile ≥520 MPa Yield ≥420 MPa Elongation ≥19% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Suitable for Ultra High Strength Structure, Heavy Equipment, Bridge Components, High Load Bearing Parts	Thickness 1.0–6.0 mm Width 1000–1800 mm Length 2000–12000 mm Custom Sizes & Coating Weight Available	C≤0.20, Si≤0.55 Mn≤1.70, P≤0.030, S≤0.030
ASTM A653 Grade 33 Regular Spangle	ASTM A653 CS Type 33 GB/T 2518 Q215+Z EN 10152 DX51D+Z JIS G3302 SGCC	Tensile 340–420 MPa Yield ≥230 MPa Elongation ≥28% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Conforms to ASTM A653 Standard, Suitable for General Commercial Use, Formed Parts, Construction Accessories	Thickness 0.3–4.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.15, Si≤0.30 Mn≤0.60, P≤0.040, S≤0.050
ASTM A653 Grade 50 High Strength Regular Spangle	ASTM A653 HSLA Grade 50 GB/T 2518 Q355B+Z EN 10152 S355GD+Z JIS G3302 SGHC440	Tensile 485–620 MPa Yield ≥345 MPa Elongation ≥22% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Conforms to ASTM A653 Standard, Suitable for High Strength Structure, Auto Chassis, Agricultural Machinery Parts	Thickness 0.8–6.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.23, Si≤0.40 Mn≤1.35, P≤0.035, S≤0.040
ASTM A653 Grade 60 Ultra High Strength Regular Spangle	ASTM A653 HSLA Grade 60 GB/T 2518 Q420B+Z EN 10152 S420GD+Z JIS G3302 SGHC490	Tensile ≥520 MPa Yield ≥415 MPa Elongation ≥18% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Conforms to ASTM A653 Standard, Suitable for Ultra High Strength Structure, Heavy Load Equipment, Bridge Components	Thickness 1.0–6.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.20, Si≤0.40 Mn≤1.35, P≤0.030, S≤0.035
EN 10152 DX51D+Z Regular Spangle	EN 10152 DX51D+Z GB/T 2518 DC01+Z ASTM A653 CS Type A JIS G3302 SGCC	Tensile 270–410 MPa Yield ≥140 MPa Elongation ≥38% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Conforms to EN 10152 Standard, Suitable for General Forming, Decoration, Home Appliances, Construction	Thickness 0.3–3.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.12, Si≤0.30 Mn≤0.60, P≤0.045, S≤0.045, Al≥0.020
EN 10152 DX52D+Z Stamping Grade Regular Spangle	EN 10152 DX52D+Z GB/T 2518 DC03+Z ASTM A653 CS Type B JIS G3302 SGCD1	Tensile 270–370 MPa Yield ≥120 MPa Elongation ≥42% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Conforms to EN 10152 Standard, Suitable for Stamping Parts, Auto Accessories, Home Appliance Liners	Thickness 0.4–2.5 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.10, Si≤0.30 Mn≤0.45, P≤0.035, S≤0.035, Al≥0.020
EN 10152 DX53D+Z Deep Drawing Grade Regular Spangle	EN 10152 DX53D+Z GB/T 2518 DC04+Z ASTM A653 DDS Type A JIS G3302 SGCD2	Tensile 270–350 MPa Yield ≥100 MPa Elongation ≥46% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Conforms to EN 10152 Standard, Suitable for Deep Drawing Parts, Complex Formed Parts, Auto Panels	Thickness 0.5–2.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.08, Si≤0.30 Mn≤0.40, P≤0.030, S≤0.030, Al≥0.020
EN 10152 S355GD+Z High Strength Regular Spangle	EN 10152 S355GD+Z GB/T 2518 Q355B+Z ASTM A653 HSLA Grade 50 JIS G3302 SGHC440	Tensile ≥470 MPa Yield ≥355 MPa Elongation ≥21% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Conforms to EN 10152 Standard, Suitable for High Strength Structure, Heavy Load Brackets, Bridge Accessories	Thickness 1.0–8.0 mm Width 1000–1800 mm Length 2000–12000 mm Custom Sizes & Coating Weight Available	C≤0.24, Si≤0.55 Mn≤1.60, P≤0.035, S≤0.035
EN 10152 S420GD+Z Ultra High Strength Regular Spangle	EN 10152 S420GD+Z GB/T 2518 Q420B+Z ASTM A653 HSLA Grade 60 JIS G3302 SGHC490	Tensile ≥520 MPa Yield ≥420 MPa Elongation ≥19% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Conforms to EN 10152 Standard, Suitable for Ultra High Strength Structure, Heavy Equipment, Bridge Components	Thickness 1.0–6.0 mm Width 1000–1800 mm Length 2000–12000 mm Custom Sizes & Coating Weight Available	C≤0.20, Si≤0.55 Mn≤1.70, P≤0.030, S≤0.030
JIS G3302 SGCC Regular Spangle	JIS G3302 SGCC GB/T 2518 DC01+Z ASTM A653 CS Type A EN 10152 DX51D+Z	Tensile 270–410 MPa Yield ≥140 MPa Elongation ≥38% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Conforms to JIS G3302 Standard, Suitable for General Commercial Use, Decoration, Home Appliance Shells	Thickness 0.3–3.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.12, Si≤0.30 Mn≤0.60, P≤0.045, S≤0.045, Al≥0.020
JIS G3302 SGCD1 Stamping Grade Regular Spangle	JIS G3302 SGCD1 GB/T 2518 DC03+Z ASTM A653 CS Type B EN 10152 DX52D+Z	Tensile 270–370 MPa Yield ≥120 MPa Elongation ≥42% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Conforms to JIS G3302 Standard, Suitable for Stamping Parts, Auto Accessories, Home Appliance Liners	Thickness 0.4–2.5 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.10, Si≤0.30 Mn≤0.45, P≤0.035, S≤0.035, Al≥0.020
JIS G3302 SGCD2 Deep Drawing Grade Regular Spangle	JIS G3302 SGCD2 GB/T 2518 DC04+Z ASTM A653 DDS Type A EN 10152 DX53D+Z	Tensile 270–350 MPa Yield ≥100 MPa Elongation ≥46% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Conforms to JIS G3302 Standard, Suitable for Deep Drawing Parts, Complex Formed Parts, Auto Panels	Thickness 0.5–2.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.08, Si≤0.30 Mn≤0.40, P≤0.030, S≤0.030, Al≥0.020
JIS G3302 SGHC440 High Strength Regular Spangle	JIS G3302 SGHC440 GB/T 2518 Q355B+Z ASTM A653 HSLA Grade 50 EN 10152 S355GD+Z	Tensile ≥440 MPa Yield ≥340 MPa Elongation ≥22% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Conforms to JIS G3302 Standard, Suitable for High Strength Structure, Auto Chassis, Agricultural Machinery Parts	Thickness 0.8–6.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.23, Si≤0.40 Mn≤1.35, P≤0.035, S≤0.040
JIS G3302 SGHC490 Ultra High Strength Regular Spangle	JIS G3302 SGHC490 GB/T 2518 Q420B+Z ASTM A653 HSLA Grade 60 EN 10152 S420GD+Z	Tensile ≥490 MPa Yield ≥400 MPa Elongation ≥19% Double-sided Zinc Coating Weight: 60–275 g/㎡ Regular Spangle Size: 0.5–3 mm, Conforms to JIS G3302 Standard, Suitable for Ultra High Strength Structure, Heavy Load Equipment, Bridge Components	Thickness 1.0–6.0 mm Width 1000–1500 mm Length 2000–6000 mm Custom Sizes & Coating Weight Available	C≤0.20, Si≤0.40 Mn≤1.35, P≤0.030, S≤0.035

Note: If you do not find a Regular Spangle Galvanized Steel Sheet that meets your requirements or is suitable for your customer’s project, please contact our manager sales consultant (Email: stsalesman4@stmetal001.com) and send us your specifications and technical parameter files to obtain Customized quotation plan.

Video

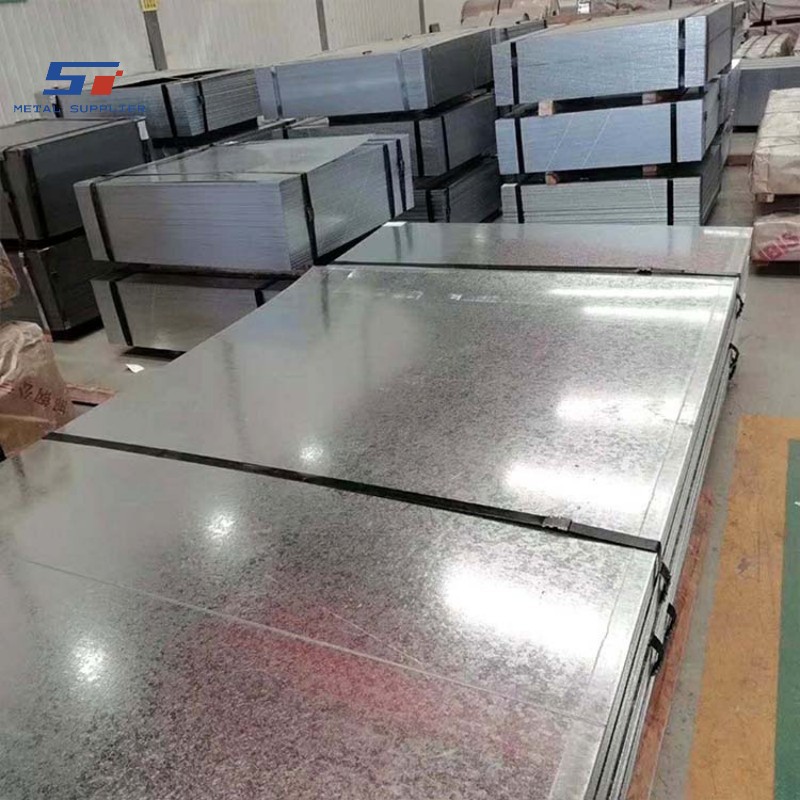

Factory

Q: What types and standards of galvanized steel do you mainly supply?

A: We mainly supply hot-dip galvanized steel products including galvanized steel sheets, coils, strips, and pipes. Common base steel grades include DX51D+Z, DX52D+Z, DX53D+Z, and DX54D+Z. The zinc coating thickness typically ranges from Z20 to Z275 to meet different corrosion protection requirements. All galvanized steel products comply with international standards such as ASTM, JIS, and EN. We can also provide material test certificates (MTC) and support customized specifications according to customer requirements.

Q: Can you provide special specifications or non-standard customization? For example, extra-wide plates or pipes with specific wall thicknesses?

A: Of course. One of our advantages is our flexible customization capabilities. We can provide customized size cutting, special thicknesses, and special surface treatments (such as 2B, BA, No.4 brushed finish, mirror finish) based on your drawings or requirements. Whether it's a small trial order or a large-volume purchase, we can meet your needs.

Q: How do you guarantee the quality and consistency of materials? Do you have quality certifications?

A: Quality is our lifeline. We use direct supply from large steel mills to ensure material traceability. Each shipment comes with a Material Quality Certificate (MTC). We have our own quality control team that conducts random checks on material composition, dimensional tolerances, surface finish, and mechanical properties. Our factory is also ISO 9001:2015 quality management system certified.

Q: What are your delivery times and logistics solutions for overseas customers?

A: For standard-specification in-stock products, we can complete preparation and shipment within 7-14 days. Delivery times for customized products will be determined through negotiation based on the specific process. We have established international logistics partners who can arrange full container load (FCL), less-than-container load (LCL), or air freight according to your needs, and provide various trade terms such as EXW, FOB, CIF, and DDP, with door-to-door service.

Q: As a new customer, how do I begin cooperation? Can you provide samples for testing?

A: The cooperation process is very smooth: 1) You provide specific requirements (brand, specifications, quantity, standards); 2) We provide a quotation and technical advice; 3) After confirmation, we arrange the contract and payment; 4) Production/pickup and quality inspection; 5) Shipment and provision of documentation. We encourage sample testing. For serious customers, we can provide small-size samples to ensure that the materials fully meet your processing and application requirements.

Why Choose Us
Over 20 years of experience in steel manufacturing, offering a comprehensive product range and one-stop supply solutions. Committed to long-term cooperation and reliable service for global partners.
Production & Quality Control
Stable production capacity supported by an experienced technical team. Strict quality management with ISO-compliant inspections and optional third-party testing (SGS, TÜV, CE).
Packing & Shipping
Flexible and secure packaging tailored to product type and customer requirements. Fast and reliable delivery with standard stock in 2 weeks and custom orders scheduled per specifications.
Certificate & Compliance
ISO9001 certified with full support for international standards. We provide material certificates (MTC) and third-party inspections to ensure compliance and customer confidence.

Hot Tags :

Regular Spangle Galvanized Sheet

Pattern Zinc Coated Steel Sheet

Visible Spangle Steel Sheet

Decorative Galvanized Steel Sheet

Request A Quote

For inquiries about our steel products, please submit your contact details. Our experts will respond promptly with solutions and support.

Related Products

Protective Zinc Coated Galvanized Steel Sheet

Zinc Coated Galvanized Steel Sheet is a steel sheet protected with a zinc coating that provides excellent corrosion resistance and long-term durability. It is widely used in construction, roofing systems, automotive components, appliances, and industrial fabrication.

Details

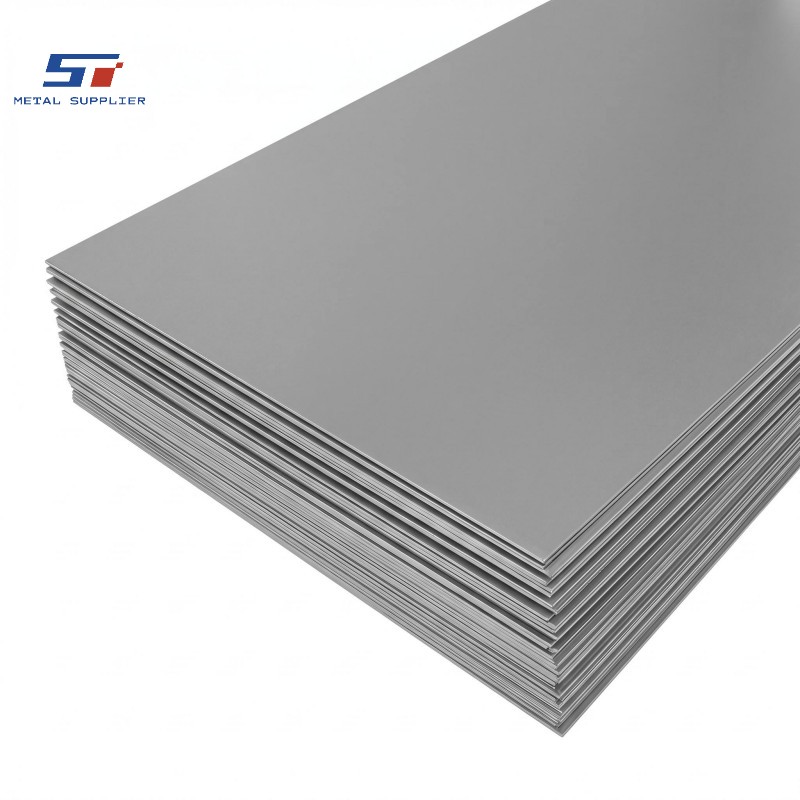

Zero Spangle Galvanized Steel Sheet

Zero Spangle Galvanized Steel Sheet is a premium galvanized steel sheet with a smooth and uniform zinc-coated surface, offering excellent corrosion resistance and superior paint adhesion. It is widely used in home appliances, automotive components, construction materials, and precision fabrication applications.

Details

Regular Spangle Galvanized Steel Sheet

Details

Thick Coating Galvanized Steel Sheet

Thick Coating Galvanized Steel Sheet is a high-performance galvanized steel sheet featuring an enhanced zinc coating for superior corrosion protection and extended service life. It is widely used in construction, infrastructure, industrial equipment, and outdoor engineering applications.

Details

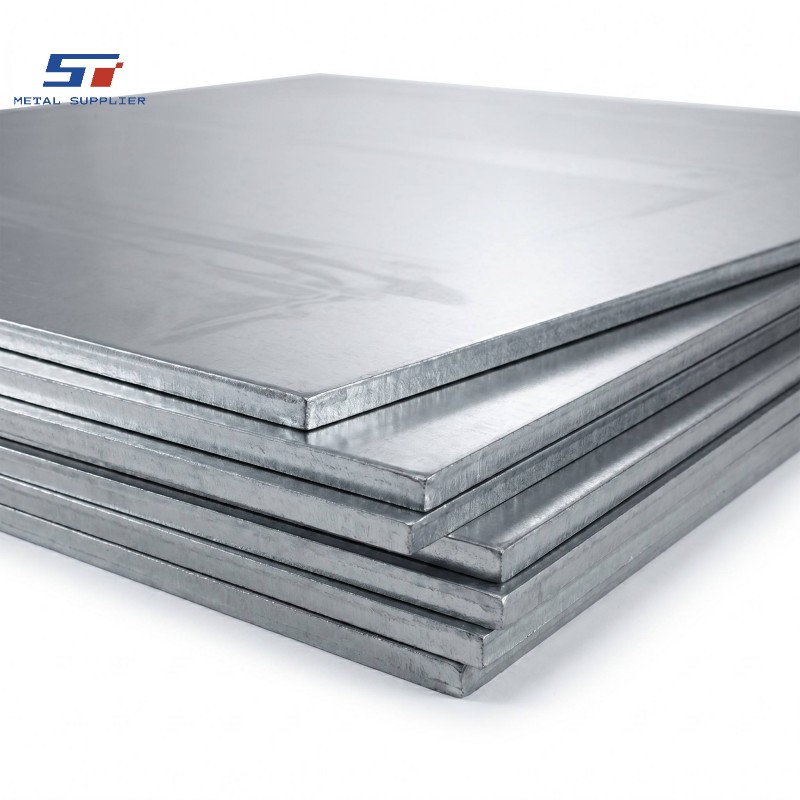

High Corrosion Resistance Galvanized Sheet
