Stainless Steel Seamless Pipe
Home Stainless Steel Stainless Steel Seamless Pipe

Thick Wall Stainless Steel Seamless Pipe

Thick Wall Stainless Steel Seamless Pipe

Thick Wall Stainless Steel Seamless Pipe is a heavy-duty pipe designed with increased wall thickness to provide superior strength and pressure resistance. It is widely used in high-pressure systems, oil and gas pipelines, mechanical equipment, and heavy industrial applications.

  • Material Type :

    Stainless Steel
  • Outer Diameter Range :

    25mm – 630mm
  • Wall Thickness Range :

    9mm – 50mm
  • Customizable :

    Yes
  • Order(MOQ) :

    2T

Specifications



Thick wall stainless steel seamless pipes are manufactured through seamless production processes, ensuring a uniform structure without weld seams. The increased wall thickness significantly enhances the pipe’s ability to withstand high pressure, heavy loads, and demanding operating conditions.



These pipes are typically made from high-quality stainless steel grades such as 304, 316, and alloy stainless steels, offering excellent corrosion resistance, high-temperature performance, and long-term durability in harsh environments.



Thick wall stainless steel seamless pipes are widely used in oil and gas transmission, chemical processing equipment, boilers, pressure vessels, and heavy machinery, where strong mechanical performance, high pressure resistance, and long service life are essential.



Thick Wall Stainless Steel Seamless Pipe is one of our core strength products. We maintain substantial inventory to ensure rapid delivery and can also customize extra-large diameter seamless pipes according to your specific requirements. Additionally, we provide comprehensive services including spectroscopic analysis, mechanical property testing, pressure testing, and non-destructive testing (NDT).



Grade Grade Equivalent Mechanical Properties Size Range Chemical Composition (Typical, %)
TP304 UNS S30400

EN 1.4301
Tensile ≥515 MPa

Yield ≥205 MPa

Elongation ≥40%
OD 25–630 mm

WT 8–60 mm

Length 6–12 m
C≤0.08, Cr 18.0–20.0

Ni 8.0–11.0, Mn≤2.0
TP304L UNS S30403

EN 1.4306
Tensile ≥485 MPa

Yield ≥170 MPa

Elongation ≥40%
OD 25–630 mm

WT 8–60 mm

Length 6–12 m
C≤0.03, Cr 18.0–20.0

Ni 8.0–12.0, Mn≤2.0
TP316 UNS S31600

EN 1.4401
Tensile ≥515 MPa

Yield ≥205 MPa

Elongation ≥40%
OD 25–630 mm

WT 8–60 mm

Length 6–12 m
C≤0.08, Cr 16.0–18.5

Ni 10.0–14.0, Mo 2.0–3.0
TP316L UNS S31603

EN 1.4404
Tensile ≥485 MPa

Yield ≥170 MPa

Elongation ≥40%
OD 25–630 mm

WT 8–60 mm

Length 6–12 m
C≤0.03, Cr 16.0–18.5

Ni 10.0–14.0, Mo 2.0–3.0
TP321 UNS S32100

EN 1.4541
Tensile ≥515 MPa

Yield ≥205 MPa

Elongation ≥40%
OD 25–630 mm

WT 8–60 mm

Length 6–12 m
C≤0.08, Cr 17.0–19.0

Ni 9.0–12.0, Ti≥5×C%
TP347H UNS S34709

EN 1.4550
Tensile ≥515 MPa

Yield ≥205 MPa

Elongation ≥35%
OD 25–630 mm

WT 8–60 mm

Length 6–12 m
C≤0.08, Cr 17.0–20.0

Ni 9.0–13.0, Nb≥10×C%
TP310S UNS S31008

EN 1.4845
Tensile ≥515 MPa

Yield ≥205 MPa

Elongation ≥35%
OD 25–630 mm

WT 8–60 mm

Length 6–12 m
C≤0.08, Cr 24.0–26.0

Ni 19.0–22.0
2205 Duplex UNS S32205

EN 1.4462
Tensile ≥655 MPa

Yield ≥450 MPa

Elongation ≥25%
OD 25–630 mm

WT 8–60 mm

Length 6–12 m
C≤0.03, Cr 22.0–23.0

Ni 5.0–6.5, Mo 3.0–3.5
2507 Super Duplex UNS S32750

EN 1.4410
Tensile ≥800 MPa

Yield ≥550 MPa

Elongation ≥15%
OD 25–630 mm

WT 8–60 mm

Length 6–12 m
C≤0.03, Cr 24.0–26.0

Ni 6.0–8.0, Mo 3.0–5.0
904L UNS N08904

EN 1.4539
Tensile ≥490 MPa

Yield ≥220 MPa

Elongation ≥35%
OD 25–630 mm

WT 8–60 mm

Length 6–12 m
C≤0.02, Cr 19.0–23.0

Ni 23.0–28.0, Mo 4.0–5.0

Note: If you do not find a Thick Wall Stainless Steel Seamless Pipe that meets your requirements or is suitable for your customer’s project, please contact our manager sales consultant (Email: stsalesman4@stmetal001.com) and send us your specifications and technical parameter files to obtain Customized quotation plan.



Video

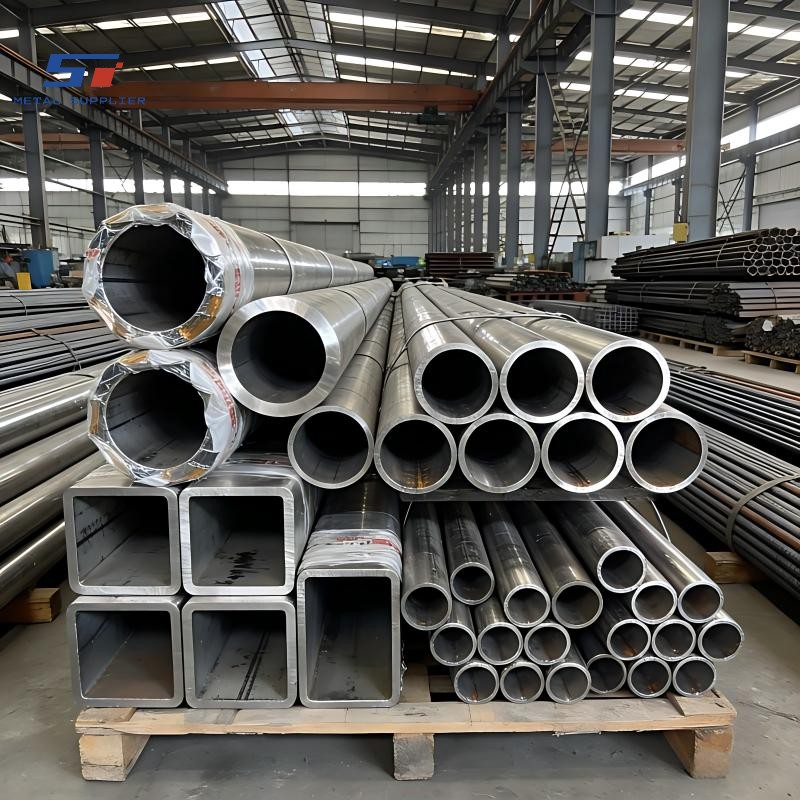

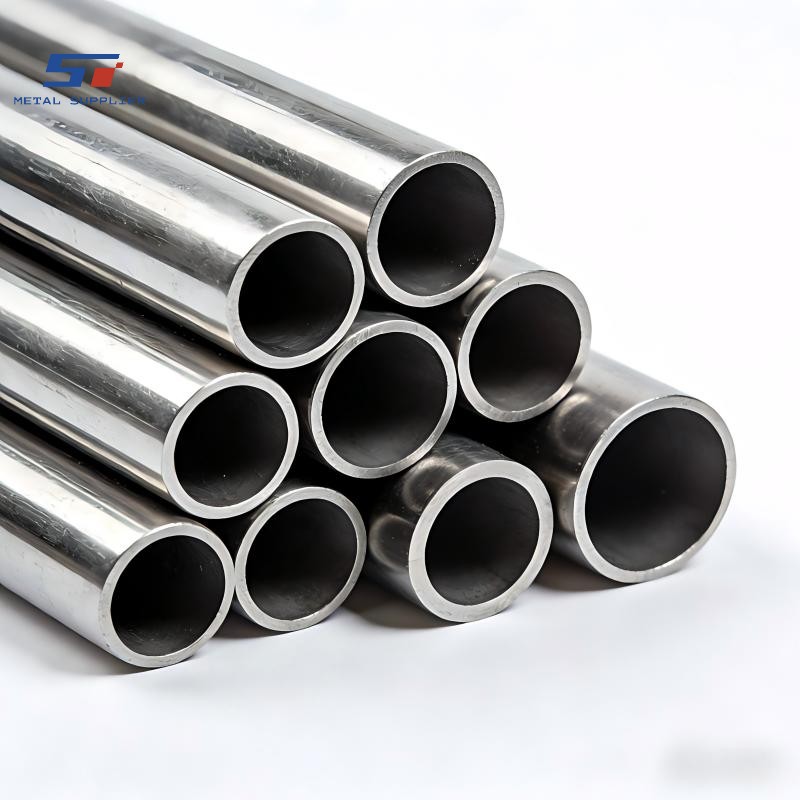

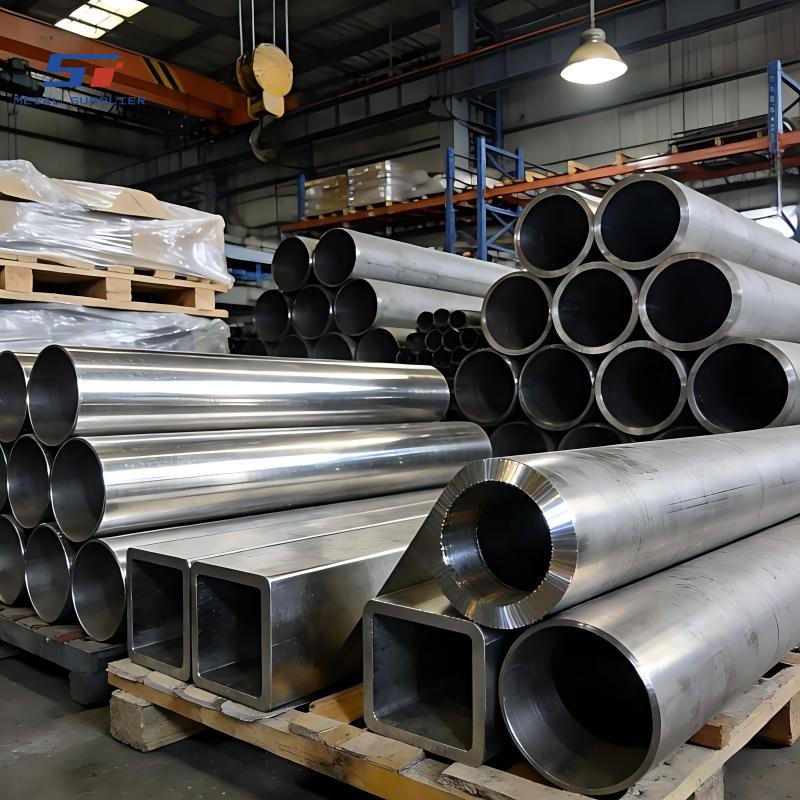

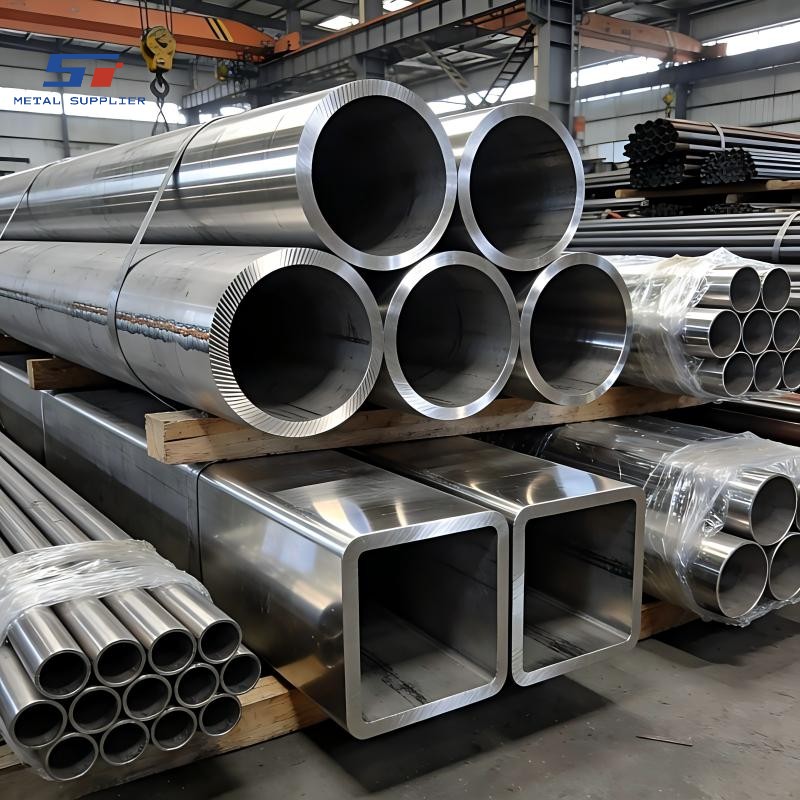

Factory

  • Thick Wall Stainless Steel Seamless Pipe
  • Thick Wall Stainless Steel Seamless Pipe
  • Thick Wall Stainless Steel Seamless Pipe
  • Thick Wall Stainless Steel Seamless Pipe
  • Thick Wall Stainless Steel Seamless Pipe
  • Thick Wall Stainless Steel Seamless Pipe
  •

FAQs

Q: What types and standards of stainless steel do you mainly supply?

A: We mainly supply a wide range of stainless steel products including stainless steel pipes/tubes (seamless and welded), plates, coils, strips, and bars. Common grades include 304/L, 316/L, 321, 310, 410, 430, 2205 (Duplex), and 904L, which are widely used in construction, chemical processing, food equipment, and marine engineering. All stainless steel products comply with international standards such as ASTM, JIS, and EN. We can also provide corresponding material test certificates (MTC) and support customized specifications according to customer project requirements.



Q: Can you provide special specifications or non-standard customization? For example, extra-wide plates or pipes with specific wall thicknesses?

A: Of course. One of our advantages is our flexible customization capabilities. We can provide customized size cutting, special thicknesses, and special surface treatments (such as 2B, BA, No.4 brushed finish, mirror finish) based on your drawings or requirements. Whether it's a small trial order or a large-volume purchase, we can meet your needs.



Q: How do you guarantee the quality and consistency of materials? Do you have quality certifications?

A: Quality is our lifeline. We use direct supply from large steel mills to ensure material traceability. Each shipment comes with a Material Quality Certificate (MTC). We have our own quality control team that conducts random checks on material composition, dimensional tolerances, surface finish, and mechanical properties. Our factory is also ISO 9001:2015 quality management system certified.



Q: What are your delivery times and logistics solutions for overseas customers?

A: For standard-specification in-stock products, we can complete preparation and shipment within 7-14 days. Delivery times for customized products will be determined through negotiation based on the specific process. We have established international logistics partners who can arrange full container load (FCL), less-than-container load (LCL), or air freight according to your needs, and provide various trade terms such as EXW, FOB, CIF, and DDP, with door-to-door service.



Q: As a new customer, how do I begin cooperation? Can you provide samples for testing?

A: The cooperation process is very smooth: 1) You provide specific requirements (brand, specifications, quantity, standards); 2) We provide a quotation and technical advice; 3) After confirmation, we arrange the contract and payment; 4) Production/pickup and quality inspection; 5) Shipment and provision of documentation. We encourage sample testing. For serious customers, we can provide small-size samples to ensure that the materials fully meet your processing and application requirements.



Note: If you do not find a Thick Wall Stainless Steel Seamless Pipe that meets your requirements or is suitable for your customer’s project, please contact our manager sales consultant (Email: stsalesman4@stmetal001.com) and send us your specifications and technical parameter files to obtain Customized quotation plan.0



  • Why Choose Us
    Why Choose Us
    Over 20 years of experience in steel manufacturing, offering a comprehensive product range and one-stop supply solutions. Committed to long-term cooperation and reliable service for global partners.
  • Production & Quality Control
    Production & Quality Control
    Stable production capacity supported by an experienced technical team. Strict quality management with ISO-compliant inspections and optional third-party testing (SGS, TÜV, CE).
  • Packing & Shipping
    Packing & Shipping
    Flexible and secure packaging tailored to product type and customer requirements. Fast and reliable delivery with standard stock in 2 weeks and custom orders scheduled per specifications.
  • Certificate & Compliance
    Certificate & Compliance
    ISO9001 certified with full support for international standards. We provide material certificates (MTC) and third-party inspections to ensure compliance and customer confidence.







Request A Quote
For inquiries about our steel products, please submit your contact details. Our experts will respond promptly with solutions and support.

Related Products

Martensitic Stainless Steel Pipe 420 410
Reinforced Martensitic Stainless Steel Pipe

Martensitic Stainless Steel Pipe is a high-strength stainless steel pipe known for its excellent hardness, wear resistance, and mechanical strength. Grades such as 410 and 420 martensitic stainless steel pipes are widely used in mechanical equipment, industrial structures, and engineering applications requiring high durability.

Details
Duplex Stainless Steel Pipe
Enhanced Duplex Stainless Steel Pipe

Duplex Stainless Steel Pipe combines the advantages of austenitic and ferritic stainless steel, offering excellent corrosion resistance, high strength, and superior durability. Common grades such as 2205, S31803, 2507, and S32750 duplex stainless steel pipes are widely used in demanding industries including chemical processing, marine engineering, and oil and gas transportation.

Details
Ferritic Stainless Steel Pipe
Stable Ferritic Stainless Steel Pipe

Ferritic Stainless Steel Pipe is manufactured from ferritic stainless steel grades such as 430, 409, and 201, offering good corrosion resistance, oxidation resistance, and stable mechanical performance. It is widely used in construction structures, exhaust systems, industrial equipment, and general engineering applications where cost efficiency and durability are important.

Details

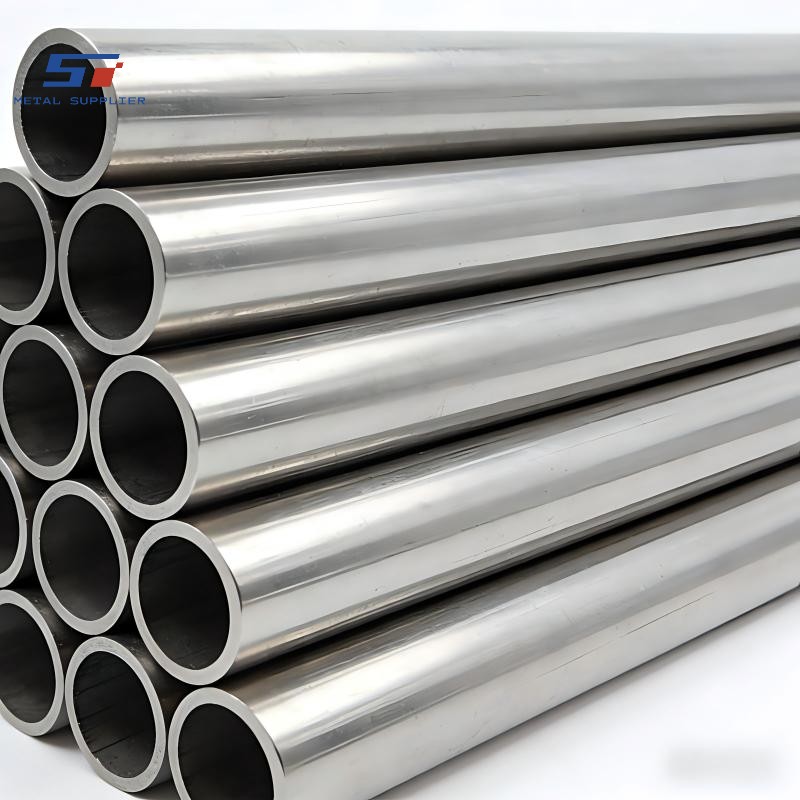

High Pressure Stainless Steel Seamless Pipe
High Pressure Stainless Steel Seamless Pipe

High Pressure Stainless Steel Seamless Pipe is a high-strength pipe designed for high-pressure applications, offering excellent corrosion resistance and structural integrity. It is widely used in oil and gas, chemical processing, power generation, and high-pressure fluid transmission systems.

Details

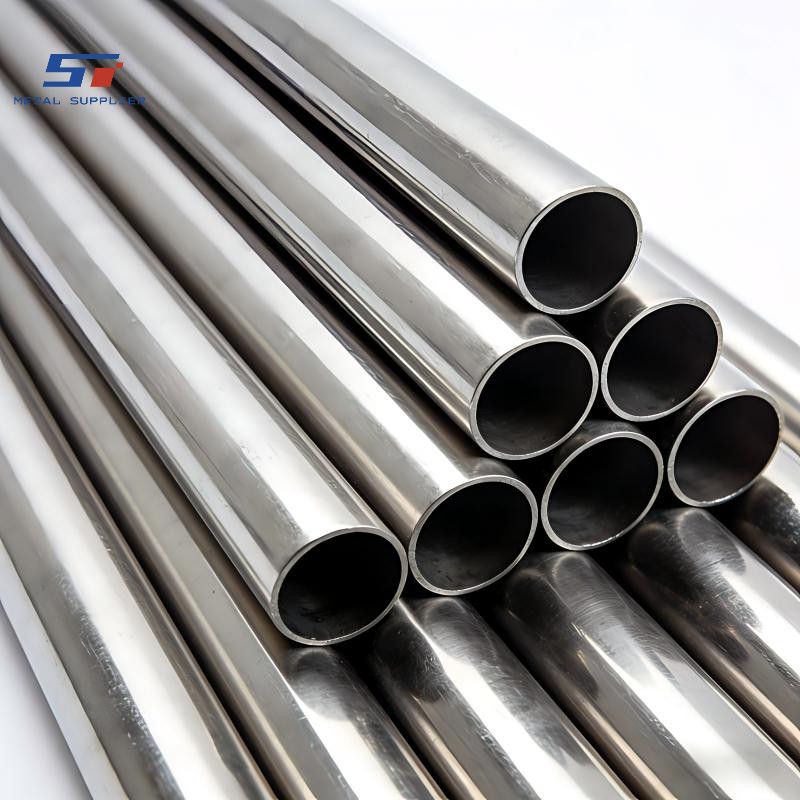

Precision Stainless Steel Seamless Pipe
Precision Stainless Steel Seamless Pipe

Precision Stainless Steel Seamless Pipe is a high-accuracy pipe manufactured through advanced seamless processes, offering excellent dimensional precision and superior surface quality. It is widely used in precision machinery, automotive components, instrumentation systems, and high-end industrial applications.

Details
Thick Wall Stainless Steel Seamless Pipe
Thick Wall Stainless Steel Seamless Pipe

Thick Wall Stainless Steel Seamless Pipe is a heavy-duty pipe designed with increased wall thickness to provide superior strength and pressure resistance. It is widely used in high-pressure systems, oil and gas pipelines, mechanical equipment, and heavy industrial applications.

Details

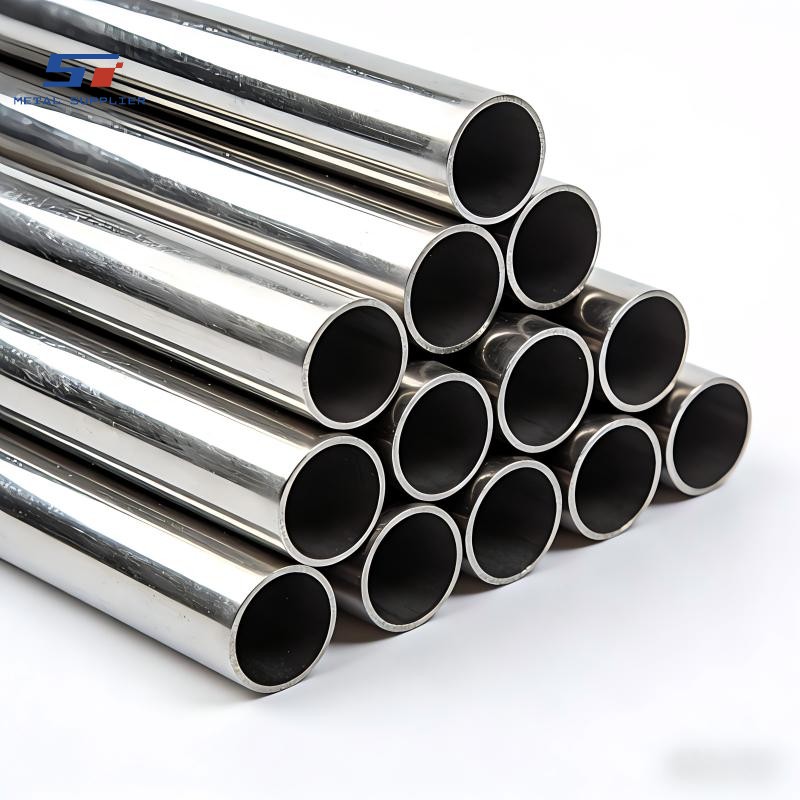

Heat Resistant Stainless Steel Seamless Pipe
Heat Resistant Stainless Steel Seamless Pipe

Heat Resistant Stainless Steel Seamless Pipe is designed to withstand high-temperature environments while maintaining excellent mechanical strength and oxidation resistance. It is widely used in furnaces, boilers, heat exchangers, and high-temperature industrial systems.

Details

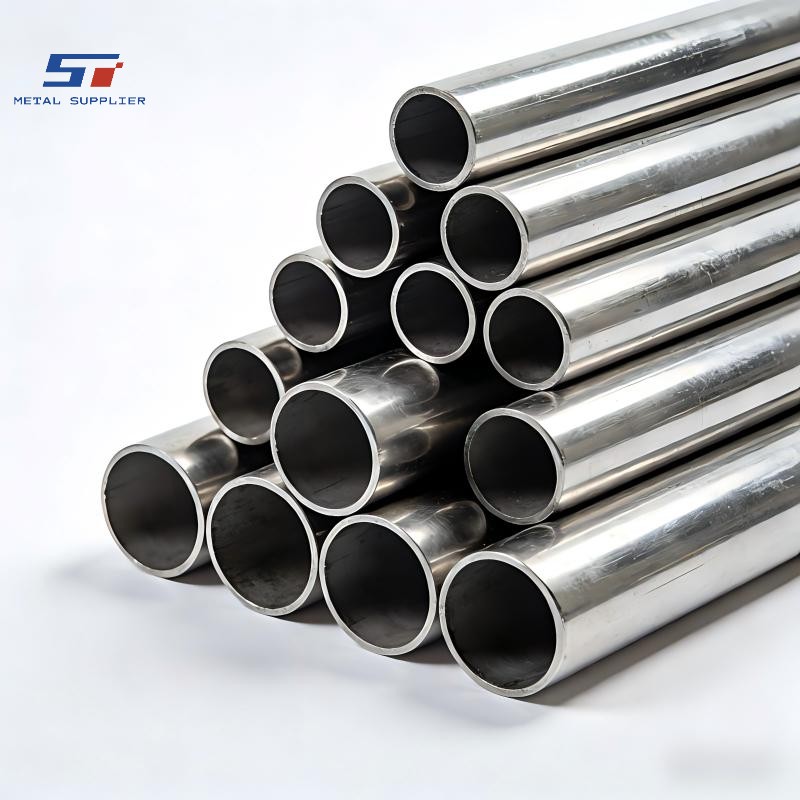

Industrial Grade Stainless Steel Seamless Pipe
