Sealed CNC Machined Stainless Steel Pump Housing
Fully machined stainless steel pump housings with precision-machined volute profiles, impeller chambers, seal cavities, and mounting flanges produced in a single CNC setup for guaranteed concentricity. Suitable for centrifugal, gear, diaphragm, and sanitary pumps. Available in 304, 316/316L, 2205 duplex, and CF8M cast stainless with optional electropolishing, passivation, and hydrostatic testing. Max envelope 800 × 600 × 500 mm.
Manufacturing Processes :
CNC turning (multi-axis with live tooling), CNC milling (3/4/5-axis), cylindrical grinding, centerless grinding, honing, thread cutting, broaching, drilling & tapping, EDM wire-cut (partner)Heat Treatment :
Quench & temper | Case hardening / carburizing | Induction hardening | Solution annealing | Vacuum hardening | Nitriding | Stress relieving. Every heat treatment batch ships with time–temperature chart and hardness report.Surface Treatment :
Zinc plating (clear/yellow passivation) | Zinc-nickel alloy | Electroless nickel | Hard chrome plating | Black oxide | Phosphating (MnPO4) | Passivation (ASTM A967) | Electropolishing | Anodizing (aluminum) | Powder coatingCustomizable :
YesOrder(MOQ) :
Prototype: 1–10 pcs (no MOQ for billet-machined parts). Small batch: 10–500 pcs. Series production: 500–50,000+ pcs/month.Specifications

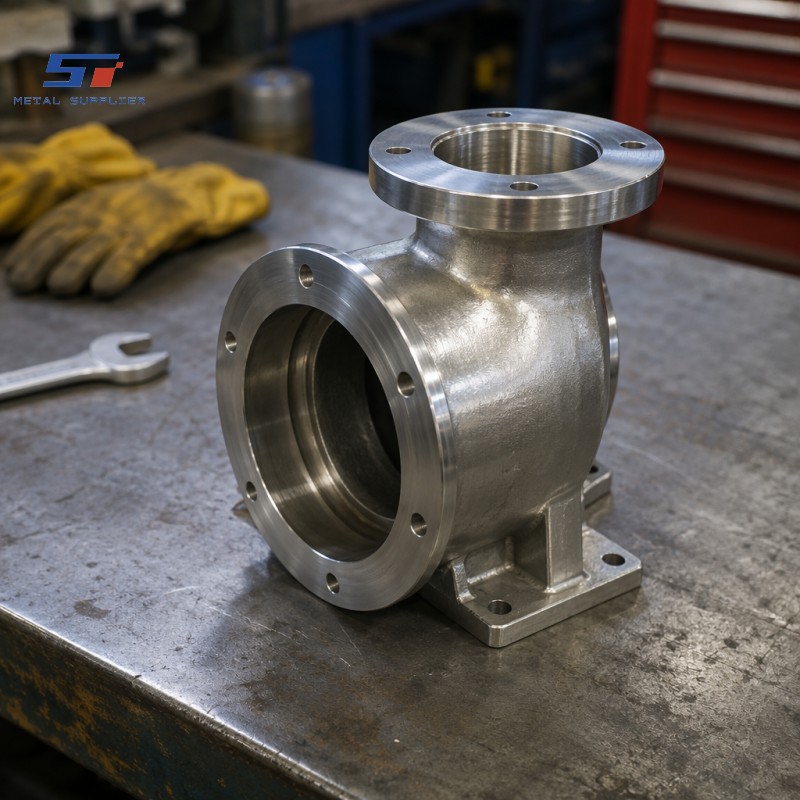

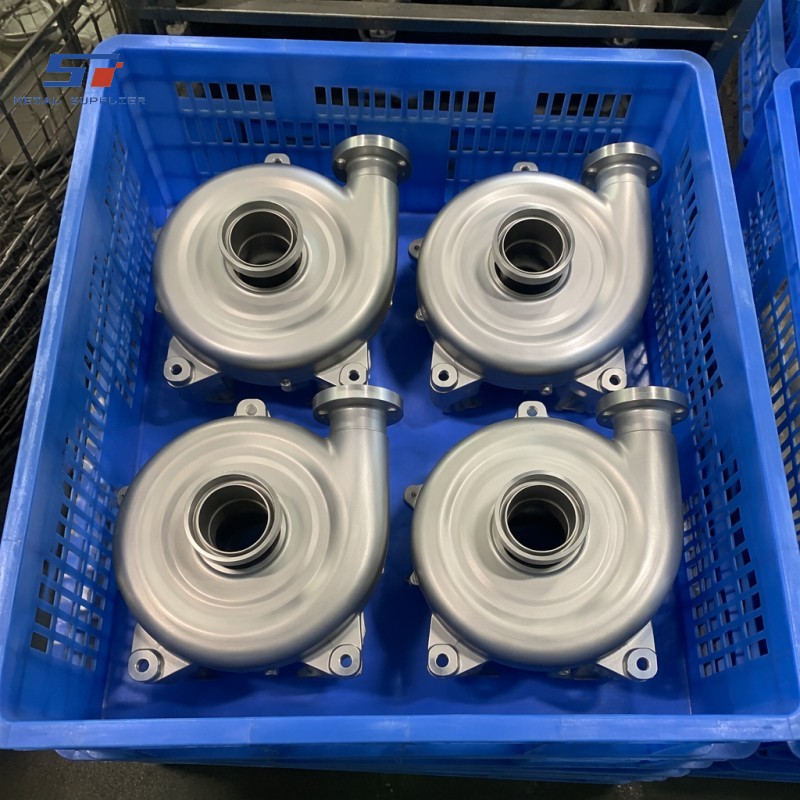

Shengtao's sealed CNC machined stainless steel pump housings are produced from solid billet or pre-qualified cast blanks on multi-axis CNC machining centers, with all critical features — the volute or impeller chamber profile, the mechanical seal cavity bore, the suction and discharge port faces, the mounting flange, and all bolt holes — machined in a single integrated setup from a common datum. This single-setup approach is the foundation of pump housing quality because it guarantees that the seal cavity, the impeller chamber, and the port flanges share a common centerline and face relationship to within 0.02 mm concentricity, which directly determines how quietly and reliably the pump will run. When the seal cavity is even slightly eccentric to the impeller chamber, mechanical seal life is dramatically reduced and bearing loads increase — problems that are prevented before they start by our unified machining methodology.
The stainless steel grade is selected to match the pumped fluid and operating environment. 304 is suitable for clean water, low-chloride process fluids, and general industrial service. 316/316L is the standard for chemical, marine, and wastewater applications where chloride pitting resistance is required. Duplex 2205 is increasingly specified for high-pressure multistage pumps, offshore firewater pumps, and desalination high-pressure pumps because its roughly doubled yield strength allows a thinner, lighter housing for the same pressure rating. CF8M (cast 316 equivalent) is used when the housing geometry favors a casting followed by finish machining of critical surfaces. For sanitary and pharmaceutical pump housings where surface finish and cleanability are paramount, we electropolish all wetted surfaces to Ra ≤0.8 µm — the standard required for 3-A sanitary compliance and EHEDG cleanability certification.
The seal cavity is the highest-precision feature of any pump housing. It is bored to H7 tolerance, faced perpendicular to the bore axis, and surface-finished to Ra 0.4–0.8 µm to provide the ideal surface for mechanical seal seating. Gasket sealing faces on flanges are machined to a serrated (phonographic) finish of Ra 3.2–6.3 µm per ASME B16.5 for standard fiber gaskets, or to a smooth Ra 1.6 µm face for O-ring seals. Every housing is dimensionally inspected on CMM, with the seal cavity-to-impeller-chamber concentricity verified as a mandatory pass/fail criterion. Optional hydrostatic shell testing at 1.5× design pressure provides documented evidence of casting or billet integrity and leak-tightness. Contact us with your pump housing drawing for a quotation within 24 hours.
Sealed CNC Machined Stainless Steel Pump Housing is one of our core strength products. We maintain substantial inventory to ensure rapid delivery and can also customize extra-large diameter seamless pipes according to your specific requirements. Additionally, we provide comprehensive services including spectroscopic analysis, mechanical property testing, pressure testing, and non-destructive testing (NDT).
|
Note: If you do not find a Sealed CNC Machined Stainless Steel Pump Housing that meets your requirements or is suitable for your customer’s project, please contact our manager sales consultant (Email: stsalesman4@stmetal001.com) and send us your specifications and technical parameter files to obtain Customized quotation plan. |
