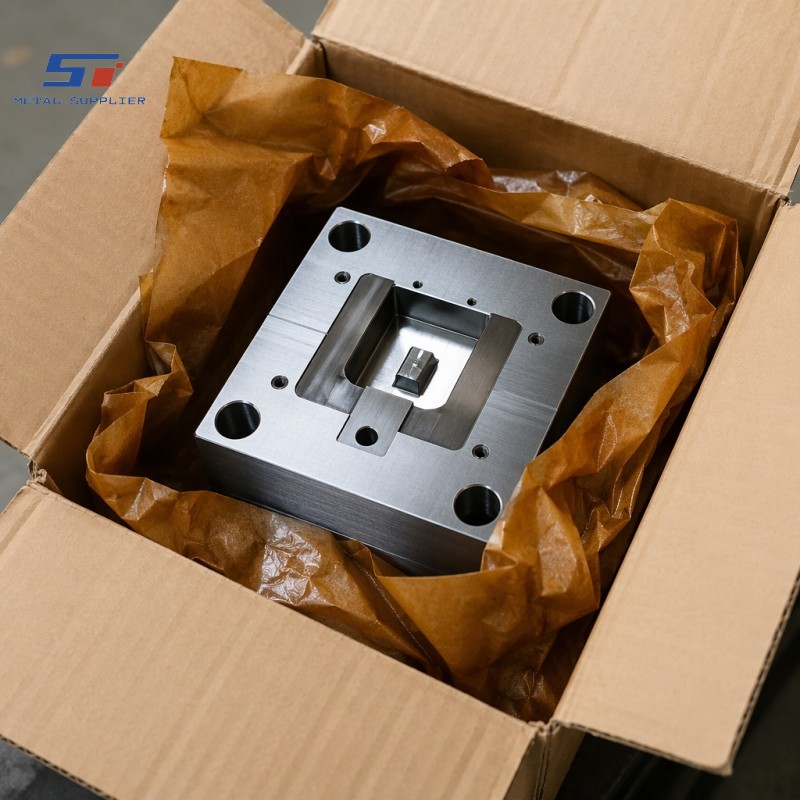

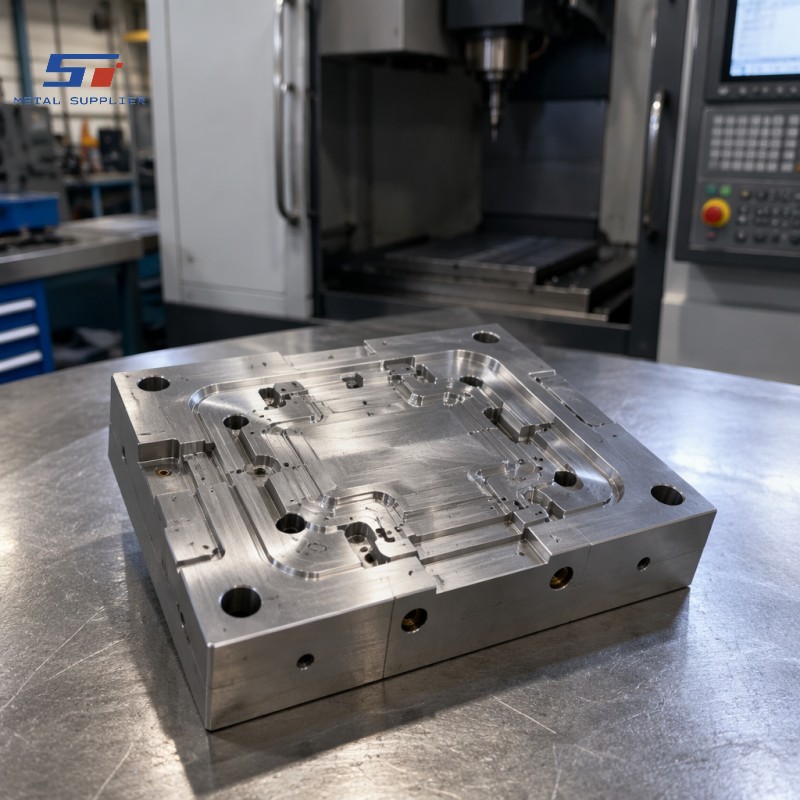

Customized CNC Machined Tool Steel Mold Insert
Custom CNC machined tool steel mold inserts with precision cavities, cores, cooling channels, ejector pin holes, and parting surfaces for injection molds, die casting dies, and compression molds. Produced from D2, H13, P20, M2, and S136 in annealed condition with vacuum heat treatment to final hardness, followed by precision grinding and polishing. Max insert size 500 × 400 × 300 mm, 3D contoured surfaces with CMM verification against CAD model.
Manufacturing Processes :
CNC turning (multi-axis with live tooling), CNC milling (3/4/5-axis), cylindrical grinding, centerless grinding, honing, thread cutting, broaching, drilling & tapping, EDM wire-cut (partner)Heat Treatment :
Quench & temper | Case hardening / carburizing | Induction hardening | Solution annealing | Vacuum hardening | Nitriding | Stress relieving. Every heat treatment batch ships with time–temperature chart and hardness report.Surface Treatment :
Zinc plating (clear/yellow passivation) | Zinc-nickel alloy | Electroless nickel | Hard chrome plating | Black oxide | Phosphating (MnPO4) | Passivation (ASTM A967) | Electropolishing | Anodizing (aluminum) | Powder coatingCustomizable :
YesOrder(MOQ) :
Prototype: 1–10 pcs (no MOQ for billet-machined parts). Small batch: 10–500 pcs. Series production: 500–50,000+ pcs/month.Specifications
Shengtao's customized CNC machined tool steel mold inserts are produced through a manufacturing sequence that has been refined across hundreds of mold projects: the insert blank is first rough-machined in the annealed condition to establish the outer geometry, cavity form with 0.2–0.5 mm machining allowance, and all through-features such as ejector pin holes, cooling channel inlets, and bolt holes. The roughed insert is then stress-relieved in a controlled furnace cycle to relax residual stresses introduced by heavy material removal, after which the parting surface, guide bores, and cavity are finish-machined to near-net shape with a small grinding allowance on flat surfaces and a polishing allowance on cavity surfaces. The insert is then vacuum heat-treated — the only method that reliably prevents surface decarburization, oxidation, and distortion in precision tool steels — and brought to the specified hardness. After heat treatment, the parting surface and critical flat faces are ground flat to within 0.01 mm per 300 mm, guide pillar and bushing bores are jig-ground to H7, and the cavity is finished to the required surface texture by a combination of EDM sinking, CNC polishing, and hand polishing to SPI or VDI finish standards.
Tool steel selection is specific to the molding process and the plastic or metal being molded. D2 is the workhorse cold-work tool steel for injection mold inserts running abrasive engineering plastics (glass-filled nylon, PBT, PPS): at 58–62 HRC it resists abrasive wear and maintains dimensional stability over millions of cycles. H13 is the hot-work standard for die casting inserts where the steel must withstand cyclic thermal shock from molten aluminum or zinc at 600–700°C without heat-checking; at 48–52 HRC it balances hot hardness with thermal fatigue resistance. P20 is a pre-hardened mold steel supplied at 28–34 HRC that can be machined directly to final dimensions without post-machining heat treatment — ideal for large mold plates and inserts where hardening a finished part would risk unacceptable warping. S136 (420-grade stainless mold steel) is selected when the mold insert must resist corrosion from PVC or other aggressive plastics, or when the insert requires a mirror-polishable surface for optically clear parts. M2 high-speed steel at 62–66 HRC is used for inserts in high-wear zones such as gate areas, shut-off surfaces, and ejector sleeves.
Every mold insert is inspected against the 3D CAD model on CMM, with particular attention to cavity profile accuracy, parting surface flatness, guide bore positions, and ejector pin hole positions relative to the cavity. Hardness is verified at multiple locations across the insert by Rockwell testing. The heat treatment time–temperature chart and vacuum furnace pressure log are included in the documentation package. Cooling channels are pressure-tested at 15 bar after final machining to confirm water-tight integrity. Contact us with your mold insert drawing or 3D model for a quotation within 24 hours.
Customized CNC Machined Tool Steel Mold Insert is one of our core strength products. We maintain substantial inventory to ensure rapid delivery and can also customize extra-large diameter seamless pipes according to your specific requirements. Additionally, we provide comprehensive services including spectroscopic analysis, mechanical property testing, pressure testing, and non-destructive testing (NDT).
|
Note: If you do not find a Customized CNC Machined Tool Steel Mold Insert that meets your requirements or is suitable for your customer’s project, please contact our manager sales consultant (Email: stsalesman4@stmetal001.com) and send us your specifications and technical parameter files to obtain Customized quotation plan. |
